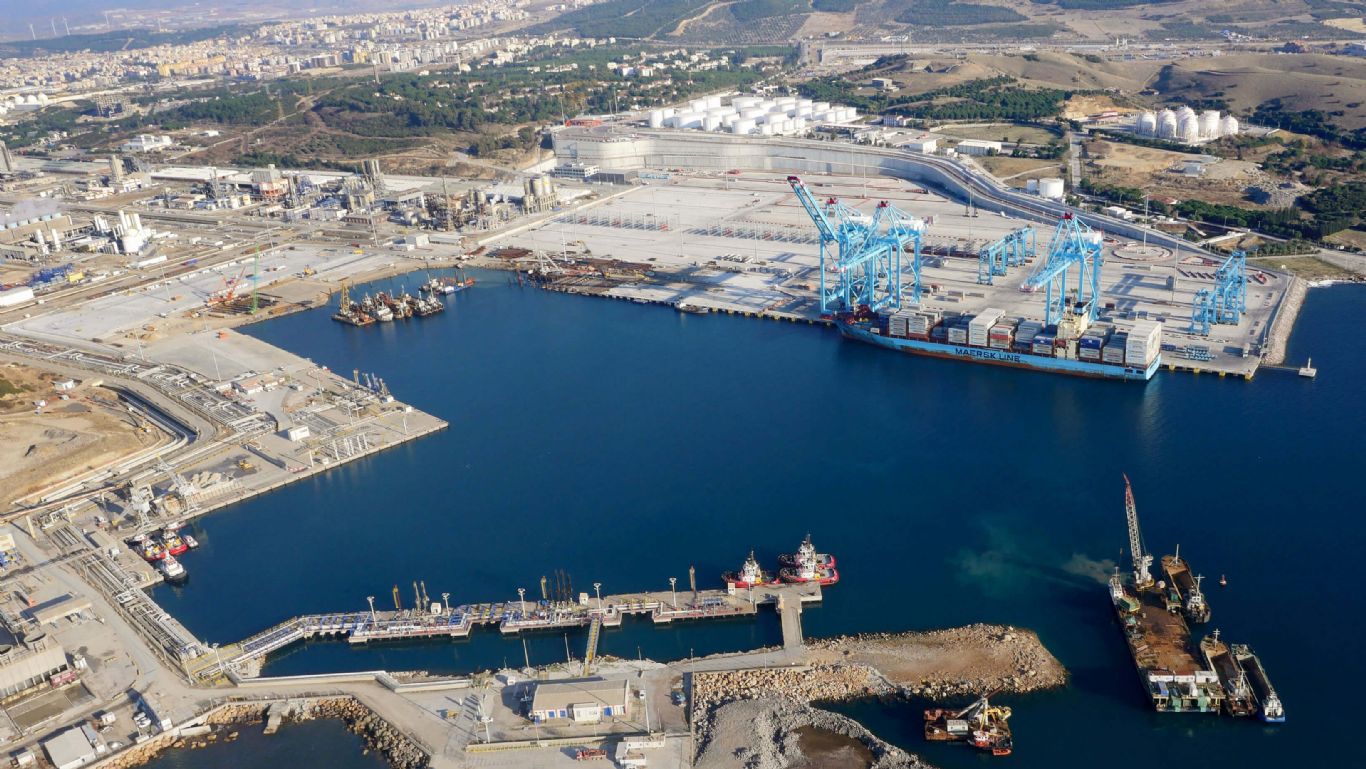

Petkim Limanı

PORT INFORMANTIONS INPUT
LAT LONG	LAT 38DEG 46' 06" N LONG 26DEG 55' 08" E
OPERATOR	PETKIM PETROKIMYA HOLDING A.S
ADDRESS	PETKIM PETROKIMYA HOLDING A.S. 35801, ALIAGA, IZMIR, TURKEY
TELEPHONE	(+90 232) 616 3240, extension 2323
FAX	(+90 232) 616 1248
TELEX	51709

JETTY PARTICULARS
PIER #1	Length 163m - Draught 6,5m - Port side alongside
PIER #2	Length 175m - Draught 10m - Port side alongside
PIER #3	Length 190m - Draught 6m - Starboard side alongside
PIER #5	Length 219m - Draught 10m - Mostly port side alongside
GENERAL CARGO PIER #1	Length 163m - Draught 13m - Starboard side alongside
GENERAL CARGO PIER #2	Length 175m - Draught 9,3m - Starboard side alongside

CARGO HANDLING
GAS	Yes
CHEMICAL	Yes
PETROLEUM	Yes
GENERAL / DRY BULK	Yes
LOADED CARGOES	Benzene (2003; 132.883 mtons - 2002; 118.821 mtons) C-4 (2003; 107.454 mtons - 2002;110.372 mtons) ACN (2003; 87.249 mtons - 2002; 87.923 mtons) Aromatic Oil (2003; 62. 654 mtons - 2002; 50.600 mtons) MEG (2003; 37,965 mtons - 2002; 60.115 mtons) Paraxylene (2003; 44.058 mtons - 2002;22.226 mtons) Pygas (2003;8.393 mtons - 2002 37.655 mtons) Caustic Soda - liquid basis (2003;10.841 mtons - 2002;23.254 mtons) EDC (2002;13.621 mtons) DEG (2003;2.761 mtons - 2002; 4.172 mtons) Propylene (2002; 2.274 mtons) PVC - PA (2003;1.636 mtons - 2002; 8.691 mtons)
DISCHARGED CARGOES	Naphtha (2003; 1.019.120 mtons - 2002; 994.490 mtons) Ammonia (2003;45.195 mtons - 2002; 48.362 mtons) VCM (2003;19.041 mtons - 2002;35.084 mtons) Acetic Acid (2003; 5.689 mtons - 2002; 4.694 mtons) Heptane (2003; 1.314 mtons - 2002; 853 mtons) Crude Salt (2003; 2.100 mtons - 2002; 7.350 mtons) Project Materials (of third parties)

FACILITIES
PILOTGATE	Compulsory to all vessels Available from Petkim Co. contact to "Petkim Pilot" Radio Frequency to contact; VHF Channel 16 Radio Frequency for manoeuvring; VHF Channel 06 24 hours mooring / unmooring
TOWAGE	Compulsory to all vessels 1 Tug is compulsory up to 4000 GRT 2 Tugs are compulsory after 4000 GRT
WORKING HOURS	24 hours working for gas, chemical, petroleum product & salt handling 16 hours working (from 08:00 hrs to 24:00 hrs) for PVC, PA handling 24 hours working for third party owned cargoes
SHORE GANGWAY	Not available
SHORE CRANE/EQUIPMENTS	Terminal provides all necessary equipments for handling of his own cargoes Third parties must provide their own cranes/equipments. Terminal has one weight bridge.
GARBAGE RECEPTION	Available as per following terms; Garbage Reception Service is rendered to all vessel's. Garbage fee is included to Petkim invoice whether vessel requests a service or not. Container boxes are available on each pier for ship's use. No permittion or notice is required from the terminal. Garbage must be put into closed drums boxes or sound nylon bags and must not contain chemical materials mentioned on Marpol App 2. Shall be asked to agent to obtain a certificate
WASTE OIL RECEPTION	Not available
BUNKERING	Available by barges of private companies (shall be supplied at anchorage)
FRESH WATER	Available by shore line (minimum of 10 tons shall be supplied); USD 10 per ton (%20 discount for Turkish vessels) Available by barges of private companies (shall be supplied at anchorage); USD 6 per ton (negotiable, subject to supplied quantity)
PROVISION / SHIP SUPPLY	Available from private ship supply companies
MEDICAL	Available from private clinics / hospitals in Aliaga (5 kms) or Izmir (60 kms) For emergent cases, antitodes of all produced chemicals are available in Refinery's clinic.
STORAGE	20.000 m2 open area and 3.600 m2 warehouse is available for the use of third parties. Please call us for tanks' capacity

RELEVANT INFORMATIONS
	* Informations to be supplied to the terminal; Vessel's name Agent Call sign Nationality GRT Length over all Manifold diameter Distances from manifold to bow/stern Estimated draughts before discharging / after loading Discharging/loading rate 7 / 5 / 3 / 2 / 1 days eta notice * VESSELS MUST PROCEED TO NEMRUT BAY

PRODUCT	LINE LENGTH (meter)	LINE DIAMETER (inch)	LINE CAPACITY (cbm)	FLOW (cbm/hour)		PRESSURE	HEAT	ARM DIAMETER (inch)	CONNECTION DIAMETER (inch)
PRODUCT	LINE LENGTH (meter)	LINE DIAMETER (inch)	LINE CAPACITY (cbm)	DESIGNED (max)	ACUTUAL (max)	PRESSURE	HEAT	ARM DIAMETER (inch)	CONNECTION DIAMETER (inch)
PIER #1
VCM -EDC	1163	6	21,204	80	80 - 50	6	amb	6	4
HEXANE	1931	8	62,589	300	300	7	amb	8	6
HEPTANE	1936	8	62,751	300	300	7	amb	8	6
ACETIC ACID	993	6	18,104	120	120 (ton)	7	amb	6	6
ACN	1449	10	73,374	430	250	2	amb	10	8
PROPYLENE	2150	6	69,687	100	90	27	amb	6	6
BENZENE	2203	12	161,026	600	600	2	min 10 C	-	6 (hose)
PARAXYLENE	2210	12	161,728	600	600	2	min 20 C	-	6 (hose)
MEG	520	12	37,923	450	450	2	amb	-	6 (hose)
PIER #2
DEG	520	6	9,48	100	100	2	amb	10	8
MEG	520	12	37,923	450	450	2	amb	10	8
ACN	1449	10	73,374	430	250	2	amb	10	8
TOLUENE	2293	12	162,558	200	200	2	amb	8	8
FOY	2227	8	72,03	200	200	7	min 10 C	8	6
BENZENE	2208	12	161,026	600	600	2	min 10 C	10	8
PARAXYLENE	2210	12	161,728	600	600	2	amb	10	8
ORTOXYLENE	2214	12	161,464	600	600	2	amb	10	8
NAPHTHA	1682	24	490,665	600	600	2	amb	10	8
PY - GAS	1789	12	130,469	120	120	7	amb	10	8
C4	2193	10	111,064	360	360	10	amb	10	6
ETHYLENE	2510	8	81,356	350	100	19	-100C	8	6
PIER #5
NAPHTHA	-	24	-	2200	2000	2	-	12	2 x 12/10
FUEL OIL	-	28	-	900 (ton)	900 (ton)	6	60 C	12	12/10
FOY	-	8	-	200 (ton)	200 (ton)	2	60 C	12	12/10
AMMONIA	-	12	-	300 (ton)	300 (ton)	7,5	- 33 C	10	8
BENZENE	-	12	-	600	600	2	min 10 C	12	12/10
PARAXYLENE	-	12	-	600	600	2	min 10 C	12	12/10
CAUSTIC	-	-	-	250 (ton)	250 (ton)	3,4	amb	-	6 (house)
